MOSFET
MOSFET
100% UIS and Rg Tested
MOSFET with ROHS compliant and halogen-free capacity is offered from e-Vehicle Semiconductor Technology. It can cover voltage classes up to 100V, combining with a wide variety of application.
| Product Number | Package | VDS(V) | ID(A)@25°C | RDS(ON)(mΩ-max)@ VGS=10V |
| NA0910 | TO-252 | 100 | 58 | 9 |
| NA1760 | TO-252 | 60 | 42 | 17.0 |
| NA3510 | TO-252 | 100 | 25 | 35 |

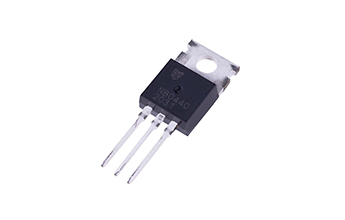

| NB0440 | TO-220 | 40 | 102 | 4.5 |
| NB1060 | TO-220 | 60 | 60 | 11.5 |
| NC4060 | PDFN5060 Dual | 60 | 15.7 | 40 |
| NF0240 | PDFN5060 | 40 | 188 | 1.7 |
| NF0840 | PDFN5060 | 40 | 53 | 8.0 |
| NF0910 | PDFN5060 | 100 | 25 | 9 |
| NF3510 | PDFN5060 | 100 | 25 | 35 |
| NG1640 | PDFN3333 | 40 | 31 | 16.0 |
