Photocoupler

EV-6340P



The model EV-6340P of photocoupler is offered from e-Vehicle Semiconductor Technology. It has wide range of operating VCC from 15V to 30V and allows for isolation of -1.5A to +1.5A output voltage components reliably.

Output Current -1.5A~+1.5A
Max Propagation Delay 150ns
Max Propagation Delay Difference 80ns
ICC (Max Supply Current) 3.0mA


EV-6340W



The model EV-6340W of photocoupler is offered from e-Vehicle Semiconductor Technology. It has wide range of operating VCC from 15V to 30V and allows for isolation of -1.5A to +1.5A output voltage components reliably.

Output Current -1.5A~+1.5A
Max Propagation Delay 150ns
Max Propagation Delay Difference 80ns
ICC (Max Supply Current) 3.0mA

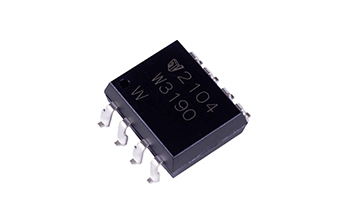

EV-W3190



The model EV-W3190 of photocoupler is offered from e-Vehicle Semiconductor Technology. It has wide range of operating VCC from 15V to 30V and allows for isolation of -5.0A to +5.0A output voltage components reliably.
Output Current -5.0A~+5.0A
Max Propagation Delay 300ns
Max Propagation Delay Difference 200ns
ICC (Max Supply Current) 3.0mA


EV-H313



The model EV-W3190 of photocoupler is offered from e-Vehicle Semiconductor Technology. It has wide range of operating VCC from 15V to 30V and allows for isolation of -3.0A to +3.0A output voltage components reliably.

Output Current -3.0A~+3.0A
Max Propagation Delay 200ns
Max Propagation Delay Difference 100ns
ICC (Max Supply Current) 3.0mA
